C.R. Brophy Machine Works, Inc. -- Pintle Products

PHC1

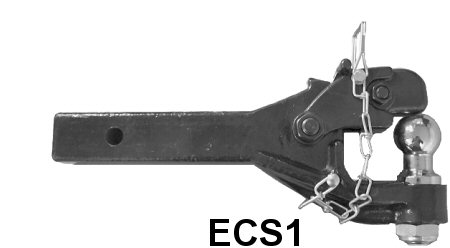

ECS1

16,000 lb Pintle Combination Hitches

	Combination hook/ball designed for versatility
	Forged alloy steel
	Interchangeable hitch balls
	Combo with shank is a one-piece design that fits 2" receiver tubes

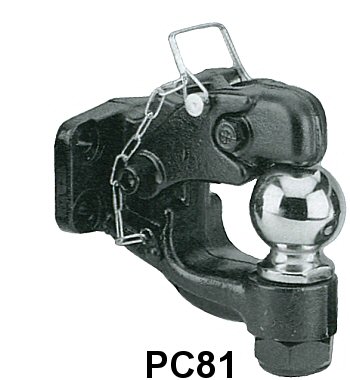

PC81 PC82 PC83 PHC1 PHC2 PHC3	1 7/8" pintle combo hitch 2" pintle combo hitch 2 5/16" pintle combo hitch 1 7/8" pintle combo hitch 2" pintle combo hitch 2 5/16" pintle combo hitch	Ball Cap./Hook Cap./TW 6,000/16,000/3,000 10,000/16,000/3,000 12,000/16,000/3,000 2,000/16,000/3,000 7,000/16,000/3,000 12,000/16,000/3,000	Weight 14.5 lb 14.5 lb 15.4 lb 13 lb 13 lb 14 lb	Std. Pack 1/box 1/box 1/box 1/box 1/box 1/box	Master Pack 4 4 4 6 6 6
PHBP	4-1/2" x 2" grade 8 cap screws, nuts & heavy lock washers		1 lb	1/bag	1

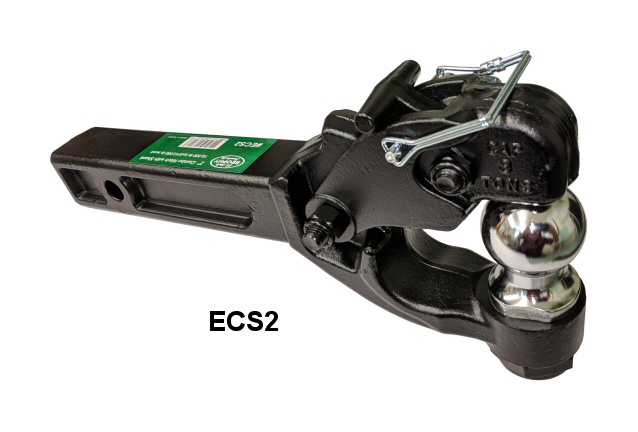

ECS1 ECS2 ECS3 CPR1	1 7/8" combo pintle hitch w/shank 2" combo pintle hitch w/shank 2 5/16" combo pintle hitch w/shank chain and pin replacement	3,500/12,000/2,400 7,000/12,000/2,400 12,000/12,000/2,400	20 lb 20 lb 21 lb 0.18 lb	1/box 1/box 1/box 1/bag	1 1 1 1
Never exceed the rated capacity of your receiver hitch

Pintle replacement balls for the above combination hitches The PC81, PC82 & PC83 now use 1 1/4" shank balls. Pre-2005 used 1 1/8" shank balls. Please measure before ordering.
PB11 PB12 PB13 PB01 PB02 PB03		1 7/8" x 1 1/4" diameter shank pintle ball, 6,000 lb cap., chrome 2" x 1 1/4" diameter shank pintle ball, 10,000 lb cap., chrome 2 5/16" x 1 1/4" diameter shank pintle ball, 12,000 lb cap., chrome 1 7/8" x 1 1/8" diameter shank pintle ball, 6,000 lb cap., chrome 2" x 1 1/8" diameter shank pintle ball, 10,000 lb cap., chrome 2 5/16" x 1 1/8" diameter shank pintle ball, 12,000 lb cap., chrome		Weight 2.3 lb 2.5 lb 2.8 lb 2.3 lb 2.5 lb 2.8 lb		Std. Pack 1/box 1/box 1/box 1/box 1/box 1/box

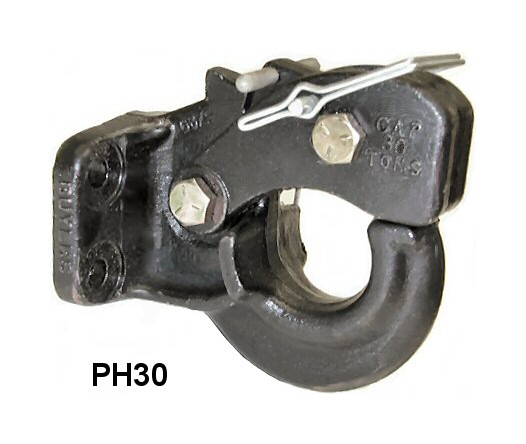

Pintle Hooks

Forged alloy steel

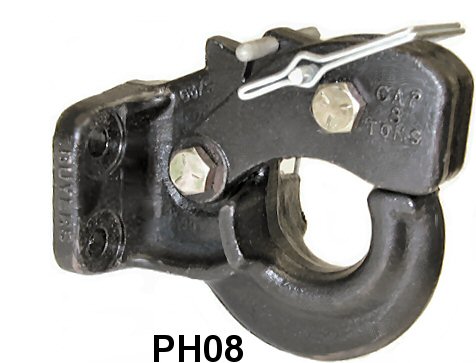

PH05 PH08 PH10 PH15 PH20	pintle hook pintle hook pintle hook pintle hook pintle hook	Hook Cap/TW 10,000/2,000 16,000/3,200 20,000/4,000 30,000/6,000 40,000/6,000	Weight 9 lb 9 lb 9 lb 11 lb 15 lb	Std. Pack 1/box 1/box 1/box 1/box 1/box	Master Pk 4 1 4 4 4
PHBP	4-1/2" x 2" grade 8 cap screws, nuts & heavy lock washers		1 lb	1/bag	1

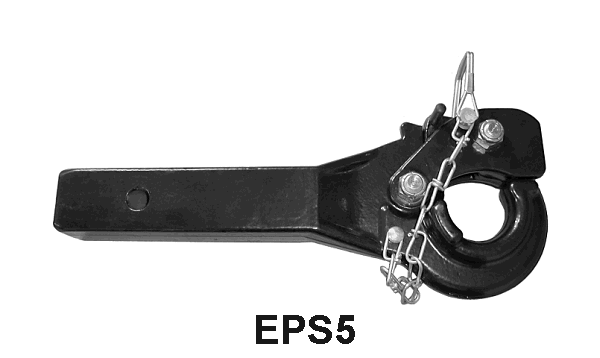

EPS5	pintle hook with shank	10,000/2,000	14 lb	1/box	1

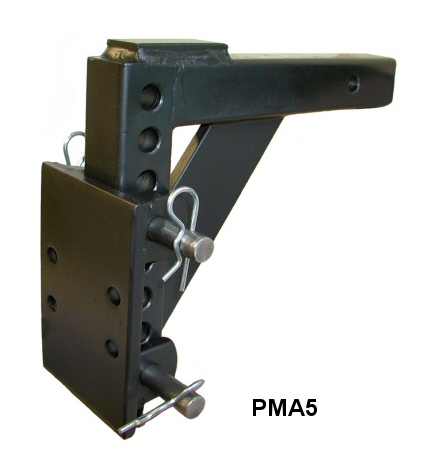

Pintle Mount Plates

	Fit into 2" receiver tubes
	Slotted holes for universal fit
	Adjustable height
	10,000 lb capacity

P907
P122
PHBP

7 3/8" long plate with 9 1/4" long shank, black
12 1/2" long plate with 12 3/4" long shank, black
4-1/2" x 2" grade 8 screws, nuts & heavy lock washers

Weight
15 lb
25 lb
1 lb

Std. Pack
1/box
1/box
1/bag

DBF2		DBB2

DBS2	DBA3	DBLK

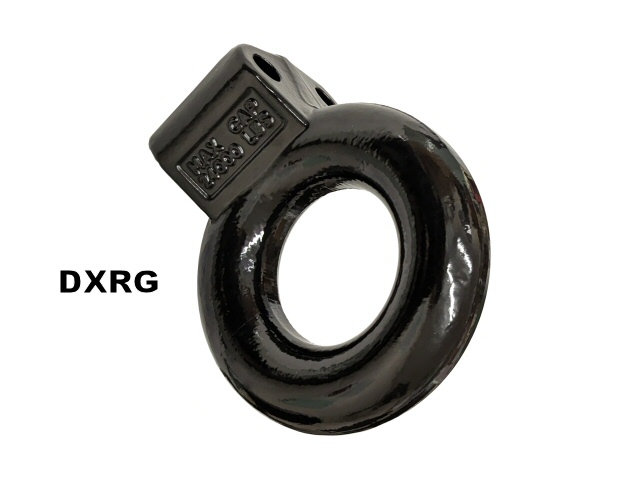

Tow Rings and Drawbars

Forged alloy steel

DBF2 DBF3 DBB2 DBB3 DBS2 DBS3 DBA3 DBA5		flat - bolt on drawbar, 2 1/2" ID eye flat - bolt on drawbar, 3" ID eye 4-bolt mount tow ring, 2 1/2" ID eye 4-bolt mount tow ring, 3" ID eye tow ring with nut, 2 1/2" ID eye tow ring with nut, 3" ID eye adjustable eye set - 3" - 3 positions adjustable eye set - 3" - 5 positions	MGTWR/MTW 20,000/ 4,000 22,000/ 4,500 35,000/ 7,000 60,000/15,000 15,000/ 3,000 45,000/ 9,000 12,000/ 2,000 12,000/ 2,000	Weight 20.3 lb 27 lb 14 lb 18 lb 9 lb 16 lb 16 lb 19 lb		Std. Pack 1/box 1/box 1/box 1/box 1/box 1/box 1/box 1/box		Master Pk 2 2 2 2 2 2 2 2
DBLK		drawbar lock fits 2 1/2"–3" ID eyes (padlock not included), zinc		3.5 lb		1/box		1
