Ball Mount diagrams
style 1 		style 2 style 3

Aluminum ball mount for 2 1/2" receivers, 4" drop, 1" hole - 13,000 lb capacity / AM48
8,000 lb Capacity Aluminum Ball Mounts
These heavy-duty ball mounts are made from aluminum for high strength applications and have a load rating of 8,000 lb. Won't rust, chip or peel. For use with any 2" receiver. Accommodate 1" shank hitch balls.

Part #
AM26
AM48
AM68
AM80
AM10

Style
2
3
3
3
3
 		Ball
 Hole
1"
1"
1"
1"
1"

Shank
2"
2"
2"
2"
2"
 		A
Length
  7 1/4"
  9"
10"
10 3/4"
11 3/4"
 		B
Drop
  2"
  4"
  6"
  8"
10"
 		C
 Lift
1"
3"
5"
–
–

MGTWR/MTW
8,000/800
8,000/800
8,000/800
8,000/800
8,000/800

Weight
2.9 lb
4.2 lb
5.1 lb
6.9 lb
7.7 lb

Std. Pack
5/bulk
5/bulk
5/bulk
5/bulk
5/bulk
ADIS
 		    aluminum ball mount display stand 7.5 lb
 		1/bulk
Locking aluminum ball mount, 4" drop, 1" hole - 14,000 lb capacity / LM40 LM40
2" drop cut-out display model locking aluminum ball mount / LMDS LMDS
14,000 lb Capacity Aluminum Ball Mounts w/Built-In Locking Hitch Pin
These heavy-duty ball mounts are made from aluminum for high strength applications and have a load rating of 14,000 lb. For use with any 2" receiver. Built-in locking hitch pin and anti-rattle features. Accommodate 1" and 1 1/4" shank hitch balls.

Part #
LM20
LX20
LM40
LX40
LM60
LX60

Style
2
2
3
3
3
3
 		Ball
 Hole
1"
1 1/4"
1"
1 1/4"
1"
1 1/4"

Shank
2"
2"
2"
2"
2"
2"
 		A
Length
  8"
  8"
  8 1/2"
  8 1/2"
  8 1/2"
  8 1/2"
 		B
Drop
 2"
 2"
 4"
 4"
 6"
 6"
 		C
 Lift
1"
1"
3"
3"
5"
5"

MGTWR/MTW
14,000/1400
14,000/1400
14,000/1400
14,000/1400
14,000/1400
14,000/1400

Weight
4.0 lb
4.1 lb
4.5 lb
4.7 lb
5.4 lb
5.6 lb

Std. Pack
6/bulk*
6/bulk*
6/bulk*
6/bulk*
6/bulk*
6/bulk*
RKKA
LMDS
DTAD
 		    re-key kit for LM20, LM40, LM60, LX20, LX40 and LX60
    2" drop cut-out display model ball mount
    2 1/2" to 2" receiver hitch reducer
 		0.34 lb
4.0 lb
3.1 lb
 		2/box
1/bulk
1/bulk
*Available in individual box
2" aluminum ball mount, 1" rise / AB20
14,000 lb Aluminum Ball Mounts
These heavy-duty ball mounts are made from aluminum for high-strength applications and have a load rating of 14,000 lb. For use with any 2" receiver and have a built-in anti-rattle feature. AB20, AB40 & AB60 accommodate 1" shank hitch balls. AX20, AX40, AX60 accommodate 1 1/4" shank hitch balls.

Part #
AB20
AX20
AB40
AX40
AB60
AX60

Style
2
2
3
3
3
3
 		Ball
 Hole
1"
1 1/4"
1"
1 1/4"
1"
1 1/4"

Shank
2"
2"
2"
2"
2"
2"
 		A
Length
  8"
  8"
  8 1/2"
  8 1/2"
  8 1/2"
  8 1/2"
 		B
Drop
 2"
 2"
 4"
 4"
 6"
 6"
 		C
 Lift
1"
1"
3"
3"
5"
5"

MGTWR/MTW
14,000/1400
14,000/1400
14,000/1400
14,000/1400
14,000/1400
14,000/1400

Weight
4.0 lb
3.8 lb
4.5 lb
4.4 lb
5.4 lb
5.4 lb

Std. Pack
6/bulk
6/bulk
6/bulk
6/bulk
6/bulk
6/bulk
AC06Aluminum Adjustable Ball Combo, 6" drop with 2" & 2 5/16" ball - 10,000 lb cap. / AC06

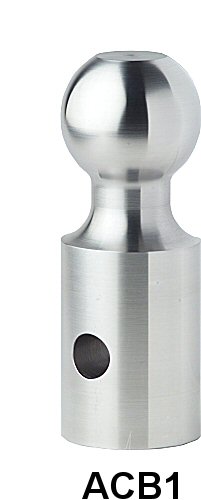

1 7/8" single Ball for AC06 & AC10 - 7,500 lb cap., chrome / ACB1

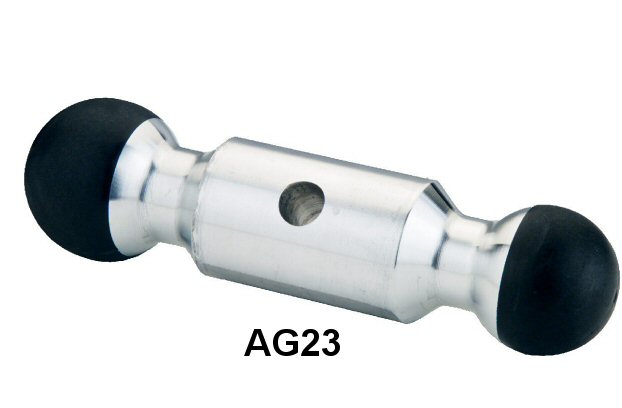

2" & 2 5/16" Greaseless AlumiBall for AC04/AC06/AC10 / AG23
AG23
ACB1
ACLK

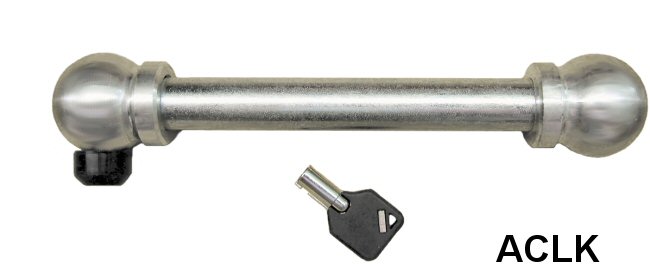

 slide locking pin only for AC06 & AC10 / ACLK
10,000 lb Capacity Aluminum Adjustable Ball Combos
These heavy-duty ball combos are made from aluminum for high strength applications and have a load rating of 10,000 lb. For use with any 2" receiver. Come with an easy-change reversible 2" and 2 5/16" ball.

Part #
AC04
AC06
AC10

Shank
2"
2"
2"
 		A
Length
  8 1/4" & 10"
  8 3/4" & 9 1/2"
  10"
 		B
Drop
  3 3/4"
  6 1/4"
  10"
 		C
 Lift
4"
8 1/4"
11"

MGTWR/MTW
8,000-10,000/1500
8,000-10,000/1500
8,000-10,000/1500

Weight
18 lb
18 lb
21 lb

Std. Pack
1/box
1/box
1/box
AG23
ACB1
ACLK
ARHL
ADIS
 		     2" & 2 5/16" Greaseless AlumiBallball for AC04, AC06 and AC10
     1 7/8" single ball for AC04, AC06 and AC10, 7,500 lb, chrome
     slide locking pin only for all AC04, AC06 and AC10
     slide locking pin & receiver locking pin set-keyed alike
     aluminum ball combo display stand
 		2.3 lb
4 lb
0.8 lb
1.4 lb
7.5 lb
 		1/bulk
1/box
1/clam shell
1/clam shell
1/bulk

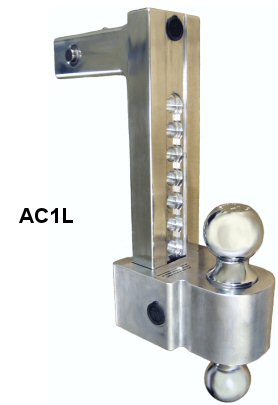

10" drop with 2" & 2 5/16" ball, 10,000 lb cap. / AC1L
10,000 lb Capacity Aluminum Adjustable Ball Combos
with Built-in Locking Pins
These heavy-duty ball combos are made from aluminum with a stow-away design and have a load rating of 10,000 lb. For use with any 2" & 2 1/2" receiver. Come with an easy-change reversible 2" and 2 5/16" ball. The built-in locks are pick-resistant and have a dust cover attached to keep out dirt.

Part #
AC6L
AC8L
AC1L
AZ6L
AZ1L

Shank
2"
2"
2"
2 1/2"
2 1/2"
 		A
Length
  8 1/2"
  9"
  8 1/2"
  8 1/2"
  8 1/2"
 		B
Drop
  6 1/4"
  8 1/4"
  10 1/4"
  6 1/4"
  10 1/4"
 		C
 Lift
6 3/4"
8 3/4"
12 1/4"
6 3/4"
12 1/4"

MGTWR/MTW
10,000/1500
10,000/1500
10,000/1500
10,000/1500
10,000/1500

Weight
16.5 lb
18.5 lb
21 lb
20 lb
22 lb

Std. Pack
1/box
1/box
1/box
1/box
1/box
RKKA
DTAD
 		     re-key kit for AC6L, AC8L, AC1L, AZ6L and AZ1L
     2 1/2" to 2" receiver hitch reducer
 		0.34 lb
3.1 lb
 		2/box
1/bulk
AST6



 6" drop with 2" and 2 5/16" ball, anti-rattle ball combo / AST6
10,000 lb Capacity Aluminum Adjustable Ball Combos
with Anti-Rattle Tensioning System
Specially designed to stop rattle with receiver tube and adjustable head tensioning bolts. Made from aluminum and stainless steel.

Part #
AST6
AST1

Shank
2"
2"
 		       A
Length
  8 1/2"
  9"
 		    B
Drop
6"
10"
 		    C
 Lift
7"
11"

MGTWR/MTW
7,500-10,000/1500
7,500-10,000/1500

Weight
16.5 lb
18.5 lb

Std. Pack
1/box
1/box
