C.R. Brophy Machine Works, Inc. -- Lashing Rings & Rope Rings

DR01	DR1S

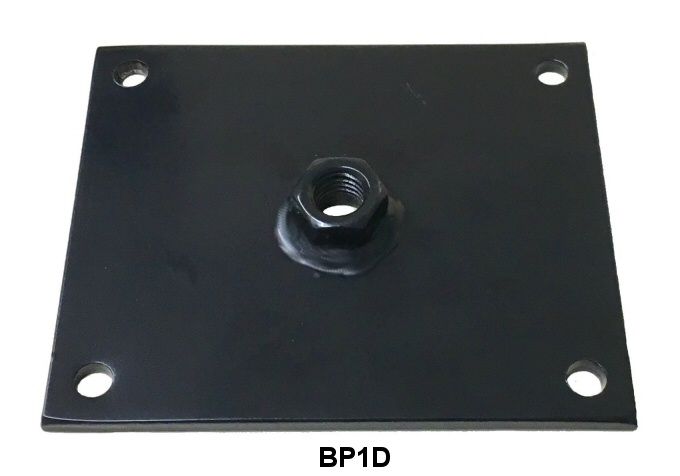

BP1D

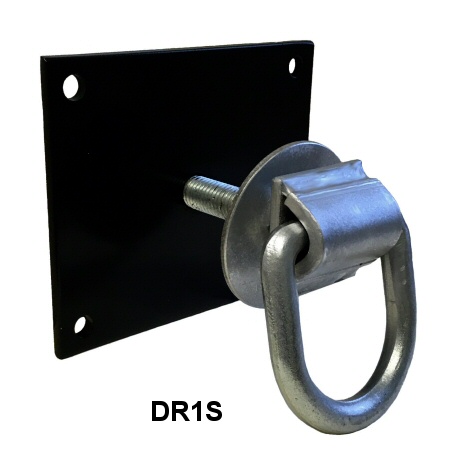

Lashing Ring with Bolt and Backing Plate

	2,000 lb working load
	Multi-point swivel tie down system for utility trailers
	Removable ring for a clean flat trailer surface

DR1S

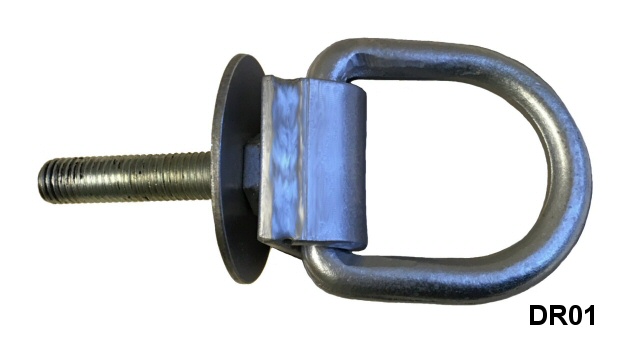

DR01
BP1D

1/2" lashing ring with bolt and backing plate set
1/2" lashing ring with bolt ONLY for BP1D backing plate
backing plate ONLY for DR01 lashing ring, black

Weight
3.7 lb
1.6 lb
2.1 lb

Std. Pack
12/set per box
20/bulk
20/bulk

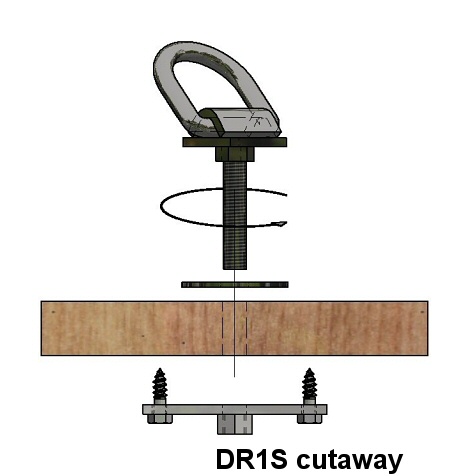

Mounting Instructions for Lashing Ring with Bolt and Backing Plate


SLB1

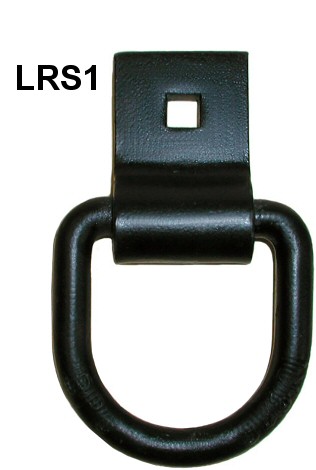

LRS1
LRW2

LR1P

Lashing Rings

Complete with mounting bracket

Weld-on Lashing Ring / dimension diagram

Bolt-on:

LRB5
LRS1
LRB1
SLB1

bolt-on, zinc
bolt-on, black
bolt-on, zinc
bolt-on, stainless

A
2 3/4"
3 1/2"
3 1/2"
3 1/2"

B
2 3/4"
3 3/8"
3 3/8"
3 3/8"

C
2"
2 3/8"
2 3/8"
2 3/8"

D
2"
2 1/4"
2 1/2"
2 1/2"

E
1 7/8"
–
2"
2"

Dia.
3/8"
1/2"
1/2"
1/2"

Max. Load/
Working Load
6,000/2,000
11,700/4,000
12,000/4,000
12,000/4,000

Weight
0.50 lb
1.2 lb
1 lb
1 lb

Std. Pack
50/bulk*
50/bulk*
50/bulk*
50/bulk*†

LR1P

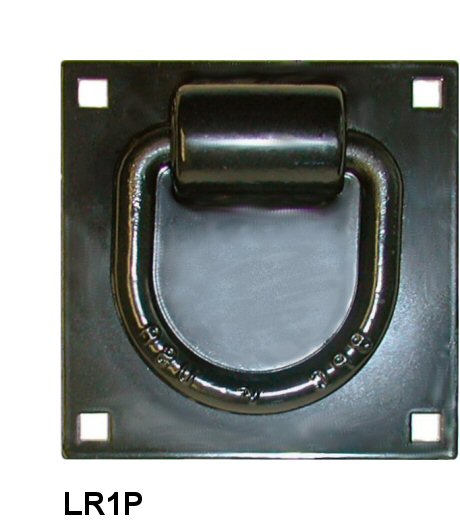

bolt-on 5/8" D-ring welded to 6"x6" plate, incl. nuts & bolts, black

18,000/6,000

5.2 lb

1/bag

Weld-on:

LRW5
LRW0
LRW1
LRW2
LRW3
LRW4

weld-on, zinc
weld-on, zinc
weld-on
weld-on
weld-on
weld-on

A
2 2/3"
3 1/2"
4 1/4"
4 1/2"
5"
6"

B
2 3/4"
3 3/8"
4 1/4"
4 1/2"
5"
5"

C
2"
2 3/8"
3"
3"
3"
3"

D
2"
2 1/2"
3"
3"
3"
4"

E
–
–
–
–
–
–

Dia.
3/8"
1/2"
5/8"
3/4"
1"
1"

Max. Load/
Working Load
6,000/2,000
12,000/4,000
18,000/6,000
26,000/9,000
46,000/15,000
46,000/15,000

Weight
0.38 lb
0.86 lb
2.1 lb
2.5 lb
4.2 lb
4.5 lb

Std. Pack
50/bulk*
50/bulk*
30/bulk
20/bulk
12/bulk
10/bulk


* Available carded † SLB1 includes zinc plated steel ring (not stainless) and stainless steel mounting bracket

SR10

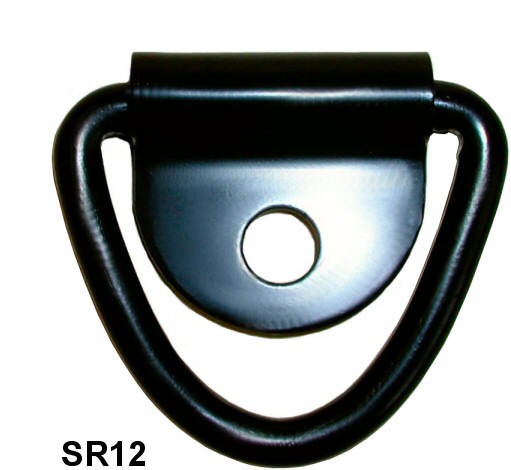

SR12

SR15

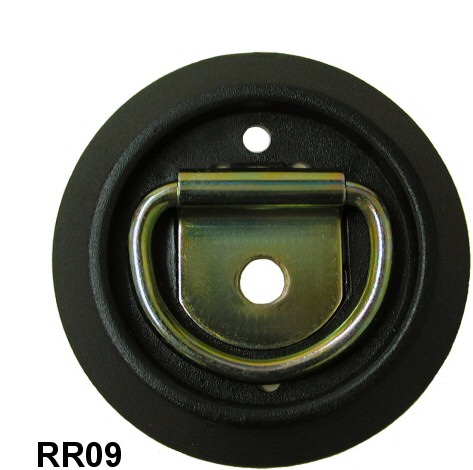

RR02

RR08

RR09

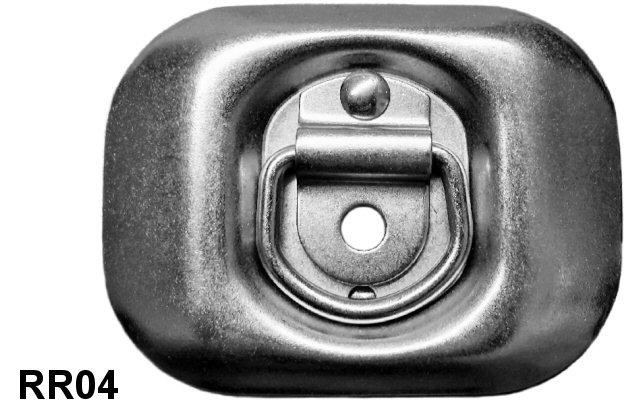

RR04

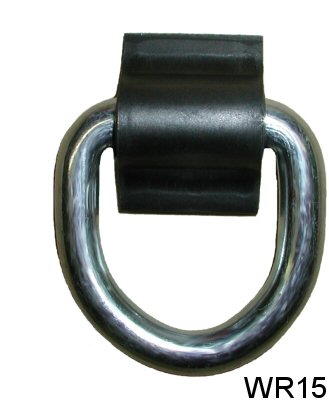

WR15

RR01	RR07	RR05

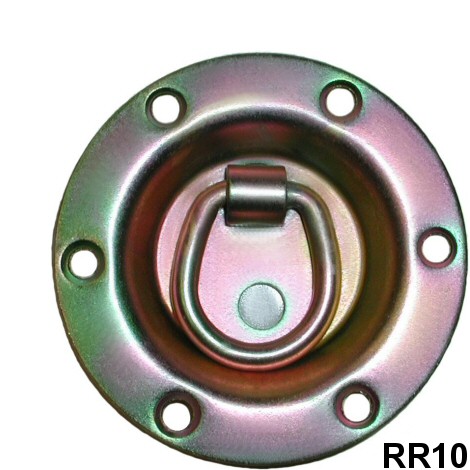

RR10	RR12	RR06
RRQ6

Rope Rings

Bolt-on Surface Mount:

SR10
SS10
SR11
SR12
SR15

bolt-on, zinc
bolt-on, stainless
bolt-on, zinc
bolt-on, black
bolt-on, zinc

A
1 7/8"
1 7/8"
1 1/2"
2 1/4"
2 1/4"

B
1 7/8"
1 7/8"
1 5/8"
2 5/8"
2 1/4"

C
1 1/2"
1 1/2"
1 3/16"
2"
1 1/2"

D
1 1/2"
1 1/2"
1 1/16"
1 1/2"
1 1/2"

E
1 5/16"
1 5/16"
1 3/4"
–
2 1/4"

Dia.
3/16"
3/16"
1/4"
1/4"
3/8"

Max. Load/
Working Load
1,000/300
1,000/300
1,500/500
2,400/800
5,000/1,600

Weight
0.1 lb
0.1 lb
0.156 lb
0.18 lb
0.4 lb

Std. Pack
200/bulk*
200/bulk*
200/bulk*
200/bulk*
100/bulk*

SR15T

SR15 packaged 4 to a bag

5,000/1,600

1.6 lb

25/bulk*

SS15

bolt-on, stainless

2 1/4"

1 1/2"

2 1/4"

3/8"

5,000/1,600

0.4 lb

100/bulk*

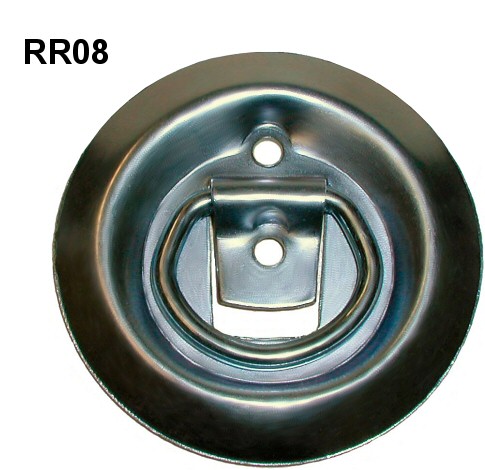

RR08

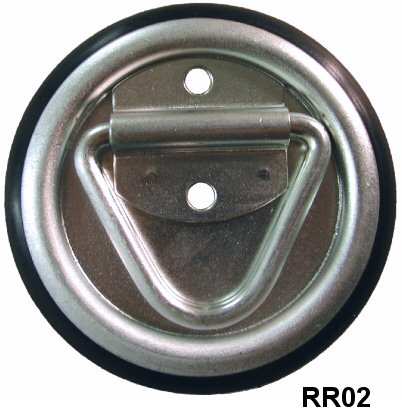

RR02
RR04
RR09

bolt-on surface mount rope ring, zinc plated
bolt-on surface or recessed ring, zinc plated w/plastic bezel pan
bolt-on surface mount rope ring, zinc plated
bolt-on surface mt, zinc plated with plastic pan

1/4"

1/4"
1/4"

800/265
800/265
1,500/500
3,000/1,000

0.26 lb
0.4 lb
0.6 lb
0.2 lb

100/bulk*
100/bulk*
100/bulk*
100/bulk*

Weld-on Surface Mount:

WR15

weld-on, zinc

B
2 1/4"

C
1 1/2"

D
1 1/2"

E
–

Dia.
3/8"

Max. Load/
Working Load
5,000/1,600

Weight
0.3 lb

Std. Pack
200/bulk*

WRBK

weld-on bracket only for WR15, plain finish

––––

0.1 lb

200/bulk*

Bolt-on Recessed Mount:

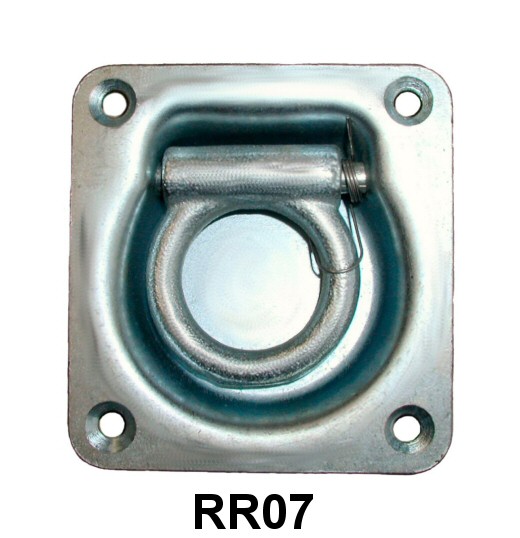

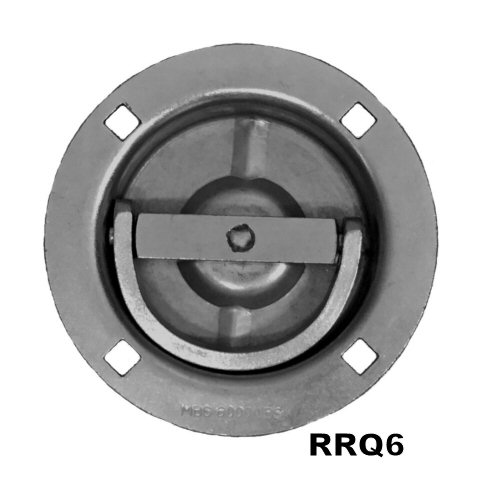

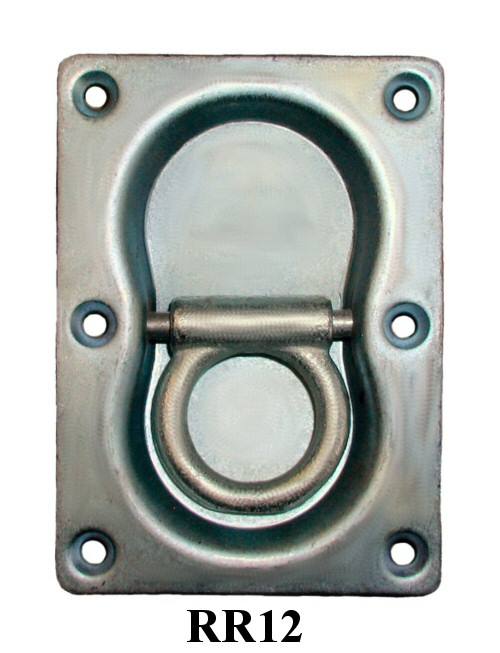

RR01 RR10 RR12 RRS7 RR07 RRS5 RR05 RRS6 RR06 RRQ6	bolt-on recessed mount rope ring, zinc plated bolt-on recessed mount rotating rope ring, yellow zinc bolt-on recessed mount rope ring, zinc plated bolt-on recessed mount rope ring, stainless steel bolt-on recessed mount rope ring, zinc plated bolt-on recessed mount rope ring, stainless steel bolt-on recessed mount rope ring, zinc plated bolt-on recessed mount rotating rope ring, stainless steel bolt-on recessed rotating rope ring with round bolt holes, zinc bolt-on recessed rotating rope ring with square bolt holes, zinc	Dia. 1/4" 1/4" 3/8" 3/8" 3/8" 1/2" 1/2"	Max. Load/ Working Load 1,200/400 1,800/600 3,300/1080 4,400/1450 4,400/1450 5,000/1,600 5,000/1,600 6,000/2,000 6,000/2,000 6,000/2,000	Weight 0.5 lb 0.29 lb 1.08 lb 0.90 lb 0.90 lb 1.1 lb 1.3 lb 2.5 lb 2.5 lb 2.5 lb	Std. Pack 100/bulk* 100/bulk 40/bulk* 50/bulk* 60/bulk* 50/bulk* 50/bulk* 20/bulk 20/bulk 20/bulk

* Available carded

BP06	BP05	BPU1
BPS1

Back Support Plates:

BPS1
BP12

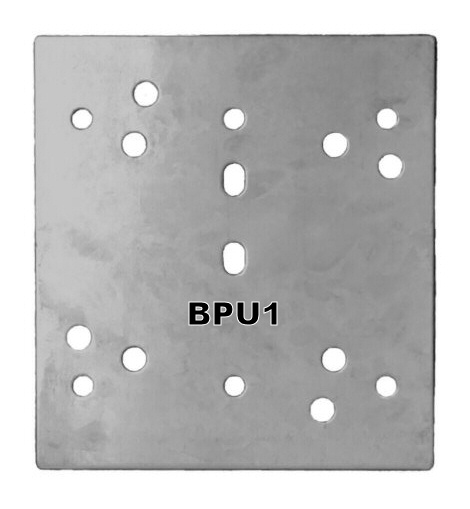

BPU1

BP05

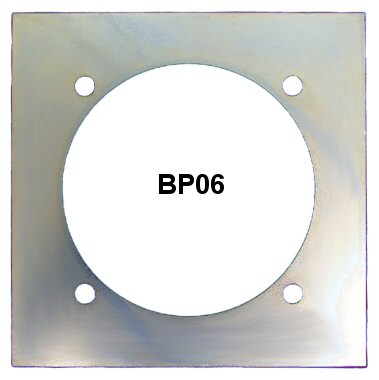

BP06

stainless steel backing plate for SLB1
backing plate for RR01, RR02, RR08, SS10 & SR10
universal backing plate for all rope rings
except RR10, RR12 and SR15
backing plate for RR05 and RRS5
backing plate for RR06 and RRS6

Weight
0.4 lb
1.1 lb
1.1 lb

1.1 lb
0.7 lb

Std. Pack
4/bulk
50/bulk
50/bulk

50/bulk
50/bulk

MOUNTING KITS available in clam shell

Rope Ring Mounting Kits:

	Come with a rope ring, a backing plate and hardware
	Available in clam shell

RR8K
RR2K
RR1K
RS5K

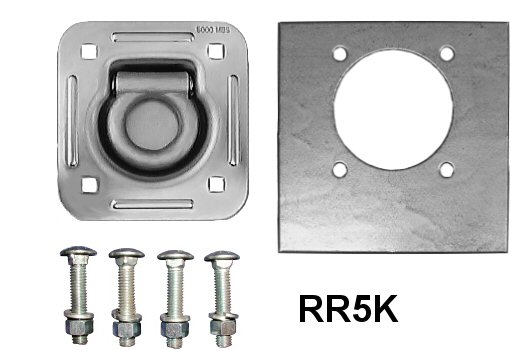

RR5K
RS6K
RR6K
RR6KB
SL1K

mounting kit includes #RR08, #BP12 and bolt pack
mounting kit includes #RR02, #BP12 and bolt pack
mounting kit includes #RR01, #BP12 and bolt pack
mounting kit includes #RRS5, steel #BP05 and steel bolt pack
mounting kit includes #RR05, #BP05 and bolt pack
mounting kit includes #RRS6, steel # BP06 and steel bolt pack
mounting kit includes #RR06, #BP06 and bolt pack
mounting kit includes #RRQ6, #BP06 and bolt pack
mounting kit includes stainless steel #SLB1, #BPS1 & bolt pack

Max Load
Working Load
800/265
800/265
1,200/400
5,000/1,600
5,000/1,600
6,000/2,000
6,000/2,000
6,000/2,000
12,000/4000

Weight
1.56 lb
1.66 lb
1.73 lb
2.60 lb
2.60 lb
3.28 lb
3.28 lb
3.50 lb
1.60 lb

Std. Pack
1/bag
1/bag
1/bag
2/bag
2/bag
1/bag
1/bag
1/box
1/bag

3010

Mounting Hardware:

3010
3011
3012
3013

3/8" x 2 1/4" carriage bolt NC, zinc plated, bag of 16
3/8" hex nut NC, zinc plated, bag of 16
3/8" lock washer, zinc plated, bag of 16
stainless steel carriage bolt, nut and lock washer, set of 4

Weight
1.23 lb
0.25 lb
0.11 lb
0.4 lb

Std. Pack
16/bag
16/bag
16/bag
4/bag
